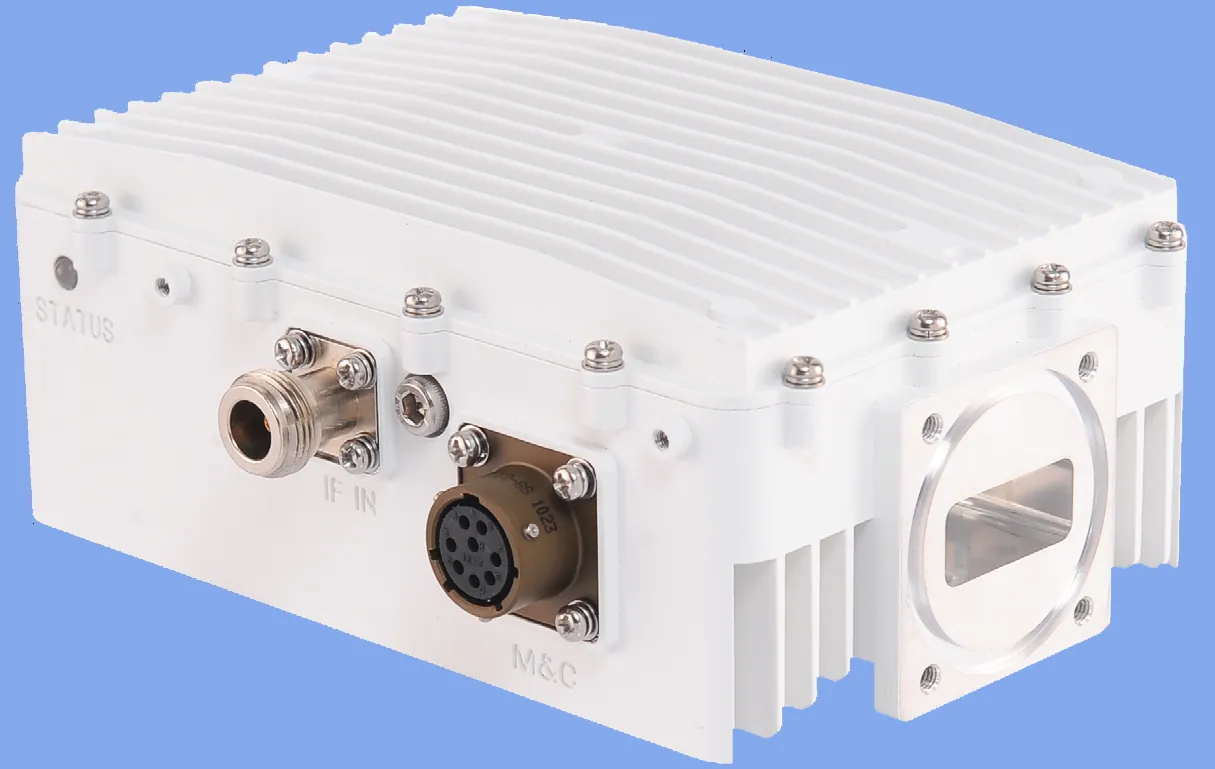

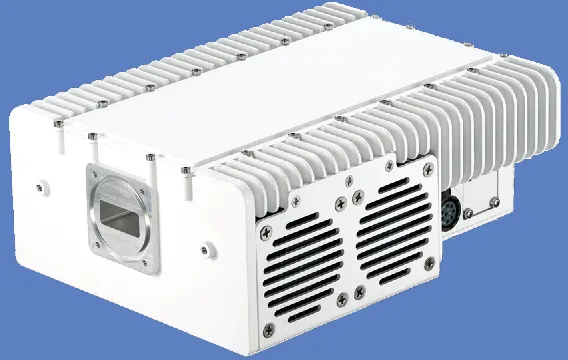

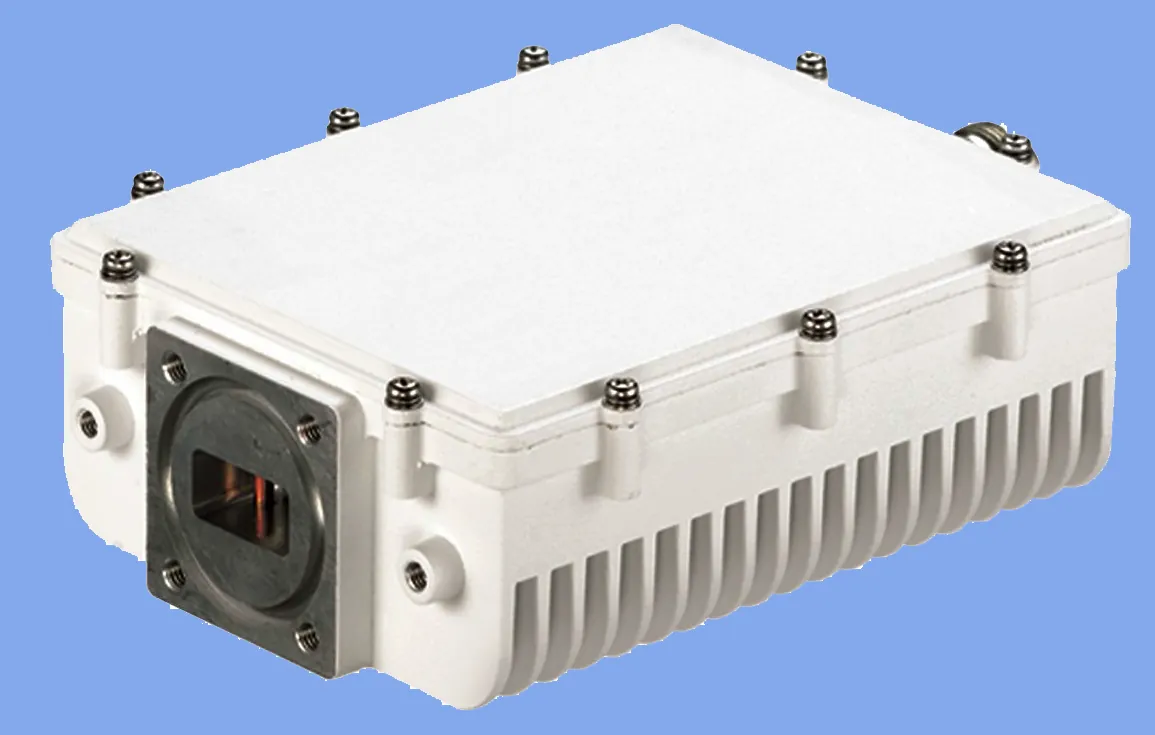

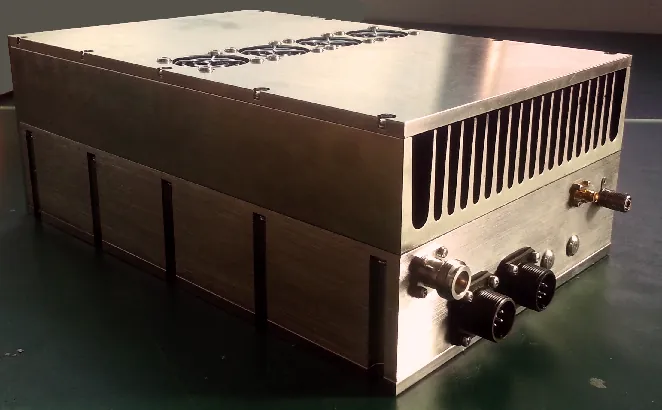

Block Upconverter (BUC)
The block upconverter (BUC) converts an L-band wireless signal to the required RF band. Product configurations are described as supporting different functional and performance requirements.
Product introduction
The block upconverter (BUC) converts an L-band wireless signal to the required RF band. Product configurations are described as supporting different functional and performance requirements.
Series information transcribed from the supplied product handbook. Contact us to confirm the current configuration and revision.
Product features
- Wide frequency coverage
- P1dB-based design for high-linearity output
- Low phase noise, high efficiency and reliability
- Forward and reverse power detection
- Voltage/current alarms; over-temperature, overpower and reflected-power protection
- Modular design for easier installation and maintenance
- Wide operating temperature range
Series specifications
| Model | RF Frequency (GHz) | IF Frequency (GHz) | LO Frequency (GHz) | Conversion Gain (dB, typical) | Output P1dB (dBm) | Connectors |
|---|---|---|---|---|---|---|
| HQ-BUC-5964-XX | 5.85～6.425 | 0.95～1.525 | 4.9 | 60 | 37～50 | SMA/BJ84 |
| HQ-BUC-6467-XX | 5.85～6.725 | 1.065～1.425 | 5.3 | 60 | 37～50 | SMA/BJ84 |
| HQ-BUC-5867-XX | 5.85～6.725 | 0.95～1.825 | 4.9 | 60 | 37～50 | SMA/BJ84 |
| HQ-BUC-6770-XX | 6.725～7.025 | 0.965～1.265 | 5.75 | 60 | 37～50 | SMA/BJ84 |
| HQ-BUC-1414-XX | 14.00～14.50 | 0.95～1.45 | 13.05 | 60 | 37～50 | SMA/BJ120 |
| HQ-BUC-1314-XX | 13.75～14.50 | 0.95～1.70 | 12.80 | 60 | 37～50 | SMA/BJ120 |
| HQ-BUC-1415-XX | 13.75～15.30 | 0.95～2.5 | 12.80 | 60 | 37～50 | SMA/BJ120 |
| HQ-BUC-2931-XX | 29～31 | 0.95～1.95 / 1～2 | 28.05 / 29.05 | 60 | 36～43 | SMA/BJ320 |
The table reproduces series-level information from the supplied product material. “XX” suffixes and range values may represent options rather than a single configuration. Units and symbols follow the source; verify unusual notations and model-specific limits against the current approved datasheet before design-in.
