Low-Noise Block Downconverter (LNB)
The low-noise block downconverter (LNB) amplifies and converts a wanted signal received from a feed, then provides the required signal to a downstream communications processing unit. Product configurations are described as supporting different functional and performance requirements.
Wakien Tech · Shenzhen, China

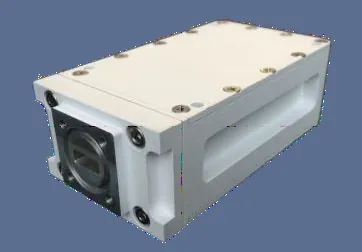

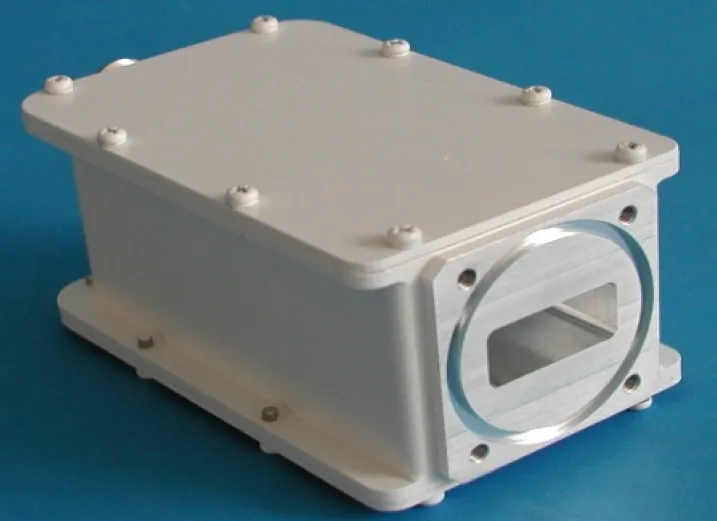

Low-Noise Block Downconverter (LNB)
The low-noise block downconverter (LNB) amplifies and converts a wanted signal received from a feed, then provides the required signal to a downstream communications processing unit. Product configurations are described as supporting different functional and performance requirements.
Product introduction
The low-noise block downconverter (LNB) amplifies and converts a wanted signal received from a feed, then provides the required signal to a downstream communications processing unit. Product configurations are described as supporting different functional and performance requirements.
Series information transcribed from the supplied product handbook. Contact us to confirm the current configuration and revision.
Product features
- Wide frequency coverage
- Low noise and low phase noise
- Low power consumption and high linearity
- Hybrid micro-assembly process; compact size and high stability
- Wide operating temperature range
Series specifications
| Model | RF Frequency (GHz) | IF Frequency (GHz) | LO Frequency (GHz) | Conversion Gain (dB, typical) | Noise Figure / Noise Temperature (max) | Output P1dB (dBm) | Connectors |
|---|---|---|---|---|---|---|---|
| HQ-LNB-3442-45 | 3.4～4.2 | 0.95～1.75 | 5.15 | 60 | ≤0.7dB / （50°K） | ≥10 | SMA/BJ48 |
| HQ-LNB-3642-45 | 3.6～4.2 | 0.95～1.525 | 5.15 | 60 | ≤0.7dB / （50°K） | ≥10 | SMA/BJ48 |
| HQ-LNB-4548-45 | 4.5～4.8 | 0.96～1.260 | 5.76 | 60 | ≤0.7dB / （50°K） | ≥10 | SMA/BJ48 |
| HQ-LNB-6778-45 | 6.7～7.75 | 0.95～2.0 | 5.75 | 60 | ≤0.94dB / （70°K） | ≥10 | SMA/BJ84 |
| HQ-LNB-7378-45 | 7.25～7.75 | 0.95～1.45 | 6.3 | 60 | ≤0.94dB / （70°K） | ≥10 | SMA/BJ84 |
| HQ-LNB-7090-45 | 7.0～9.0 | 0.95～1.95 | 6.55 | 60 | ≤0.94dB / （70°K） | ≥10 | SMA/BJ84 |
| HQ-LNB-8090-45 | 8.0～9.0 | 0.95～1.45 | 7.05 | 60 | ≤0.94dB / （70K） | ≥10 | SMA/BJ84 |
| HQ-LNB-1012-45 | 10.75～12.75 | 0.95～1.95 / TTL signal-controlled band switching | 10.8 / 11.8 | 60 | ≤1.06dB / （80°K） | ≥10 | SMA/BJ120 |
| HQ-LNB-1212-45 | 12.25～12.75 | 0.95～1.45 | 11.3 | 60 | ≤1.06dB / （80°K） | ≥10 | SMA/BJ120 |
| HQ-LNB-1921-45 | 19.2～21.2 | 0.95～1.95 / TTL signal-controlled band switching | 18.25 / 19.25 | 60 | ≤1.8dB / （150°K） | ≥10 | SMA/BJ220 |
| HQ-LNB-1821-45 | 17.7～21.2 | 0.95～1.95 / TTL signal-controlled band switching | 16.75 / 17.25 / 18.25 / 19.25 | 60 | ≤1.8dB / （150°K） | ≥10 | SMA/BJ220 |
The table reproduces series-level information from the supplied product material. “XX” suffixes and range values may represent options rather than a single configuration. Units and symbols follow the source; verify unusual notations and model-specific limits against the current approved datasheet before design-in.
